Hygienic plate heat exchanger for heating/cooling milk pasteurizer

Plate heat exchanger is a high-efficiency heat exchanger made up of a series of metal sheets with a certain corrugated shape. Thin rectangular channels are formed between various plates, and heat exchange is carried out through the plates. Plate heat exchangers are ideal equipment for liquid-liquid and liquid-vapor heat exchange

Featured Products


Sanitary Plate Heat Exchanger Milk Pasteurizer for Heating/Cooling

Plate heat exchanger
is a high-efficiency heat exchanger made up of a series of metal sheets with a certain corrugated shape. Thin rectangular channels are formed between various plates, and heat exchange is carried out through the plates. Plate heat exchangers are ideal equipment for liquid-liquid and liquid-vapor heat exchange. It has the characteristics of high heat exchange efficiency, low heat loss, compact and lightweight structure, small footprint, wide application, long service life and so on. Under the same pressure loss, the heat transfer coefficient is 3-5 times higher than that of the tube heat exchanger, the floor space is one-third of the tube heat exchanger, and the heat recovery rate can be as high as 90%.


Product Characters

Sanitary Plate Heat Exchanger Milk Pasteurizer for Heating/Cooling  EFFICIENT
       High heat transfer coefficiency -- corrugated stainless steel plate and counter flow style
       Maximum
heat transfer coefficient: 7000W/m2K
 Sanitary Plate Heat Exchanger Milk Pasteurizer for Heating/Cooling     Sanitary Plate Heat Exchanger Milk Pasteurizer for Heating/Cooling

Sanitary Plate Heat Exchanger Milk Pasteurizer for Heating/Cooling   CUSTOM-MADE
         Wide selection of materials -- plates(SS304, SS316L, SMO254,Ti,Ni,Hastelloy), gaskets(NBR, EPDM, HNBR, Fluororubber/Viton, Silicon)
        Multi-media available -- water to water(fluid to fluid), steam to water(gas to fluid)
        According to various applications, we will design the optimal product for your requirements

         Sanitary Plate Heat Exchanger Milk Pasteurizer for Heating/Cooling      Sanitary Plate Heat Exchanger Milk Pasteurizer for Heating/Cooling


Sanitary Plate Heat Exchanger Milk Pasteurizer for Heating/Cooling  CONVENIENT
       Easy cleaning -- smooth surface, detachable plates
      Small floor area -- compact size


Sanitary Plate Heat Exchanger Milk Pasteurizer for Heating/Cooling


Sanitary Plate Heat Exchanger Milk Pasteurizer for Heating/Cooling  RELIABLE
       15-year experience in heat exchanger and pressure vessel
       2 production bases -- Guangzhou; Hubei
       Strong technical team -- 5 senior engineers (over 20 years experience)
       Quality guaranteed --  CE,SGS,ISO9001 certified, 18 patents
       Warranty -- 1 year guarantee


      Sanitary Plate Heat Exchanger Milk Pasteurizer for Heating/Cooling




How It Works

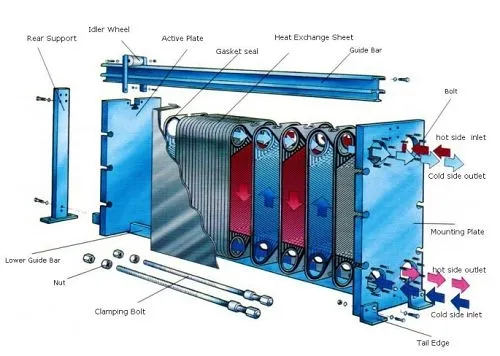

As a new efficient and compact heat exchanger, this product consists of multiple parallel corrugated-surface thin metal sheets that overlap and are then fixed by lamp plates and bolts.
Heat exchange principle: the cold working fluid and the hot working fluid flow through the narrow and winding passage made of two neighboring plates alternately and realize cold and heat exchange through the plates separating the two working fluids.

                                         Sanitary Plate Heat Exchanger Milk Pasteurizer for Heating/Cooling


 Plates and Gaskets

The plate heat exchanger's plate materials and corresponding applicable places are given in Table 1 and its gasket materials and corresponding applicable places in Table 2 for your reference.

Table 1
Plate Material
s
Material nameThickness(mm)Material gradeApplications
Stainless steel0.5-0.8304,321,316,316L
Places with serious corrosion caused by acid or base mediums and places not suitable for chloride ions
Commercial pure titanium0.5-0.8TiAlkali or salt making places, sea water desalination places, low-temperature places, freezing places or places with chloride-ion corrosion
Nickel0.5-0.8NiPlaces resistant to corrosion, hot alkali liquor corrosion, neutral solutions or subacid solutions
Acid-resistant steel0.5-0.8RS-2, SM0254, HC-276Sulfuric acid field and the fields with acid corrosion

Table 2
Gasket Materials
Material nameCodeApplicable temperatureApplications
NBRN-20~110ºCWater, non-polar oil, mineral oil, lubricating oil, silicon oil, etc.
EPDME-20~150ºCSteam, water, ozone, polar chemical mediums, alcohol, weakacids, weak bases, salt solutions, etc.
Chloroprene rubberC-40~100ºCAmmonia, mineral roil, lubricant, freon, etc.
FluororubberF0~180ºCInorganic acids, bases, mineral oil, halohydrocarbon and oxidant
Silicon rubberQ-40~200ºCFood field, etc.
